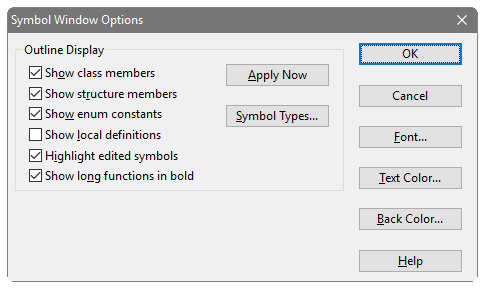

Displays the properties of the Symbol Window, which appears on the left of each source window. See: Symbol Window Options.
Show class members
If enabled, the member contents of classes are included in the Symbol Window. If unchecked, then only the class name is included in the list.
Show structure members
If enabled, then the structure field members are included in the Symbol Window. If not enabled, then only the structure name is included in the list.
Show enum constants
Includes enum constants in the Symbol Window. If not enabled, then only the enum type name will appear in the list.
Show local definitions
If enabled, then function local declarations are also shown in the Symbol Window under each function.
Highlight edited symbols
Function names and other symbol names will appear highlighted if you made any edits in them.
Show long functions in bold
Function names are displayed in bold font if the function is longer than the average length in each file. This makes functions that are probably more important or complex stand out in the list.
Apply Now
Applies the changes you made in this dialog box to the Symbol Window.
Symbol Types…
Click this button to open the Symbol Type dialog box, where you can filter out different types of symbols from the Symbol Window.
Click this button to pick the font used to draw the Symbol Window.
Text Color…
Click this button to pick the color of the text in the Symbol Window.
Back Color…
Click this button to pick the background color of the Symbol Window.
